3 W Iceblink
3 W Supercontinuum Fiber Laser
Spectral Range:
450 – 2300 nm
Average Power:
> 3 W
Pulse Duration (at Fundamental Wavelength, 1060 nm): < 10 ps
Best Power Stability
150 mW Visible Power
VIS+NIR Power Balance
Iceblink is a supercontinuum fiber laser covering the 450 – 2300 nm spectral range with over 3W of average power and superior stability (<0.5% std. dev.).
The spatial coherence and broad spectrum of the Iceblink makes it a great alterative to classic lamps, single-line lasers, LEDs, and ASE sources.
It is a very versatile white light source with a world of applications in the scientific and industrial sectors, including absorption/transmission measurements for material characterization, VIS, NIR and IR spectroscopy, single molecule spectroscopy and fluorescence excitation.
Technical Specifications
Spectral Range
450-2300 nm
Repetition Rate
80 MHz
Average Power
> 3 W
Visible Range (450 - 750 nm) Average Power
150 mW
Pulse Duration (at Fundamental Wavelength, 1060 nm)
< 10 ps
Average Power Stability
<0,5 % (std. dev.)
Polarization
Unpolarized
Output Port
Single Mode Fiber, 1.0 m length (customizable)
Optical Output
Collimated (in the range 450-1000nm), Single-mode across full spectrum
Synchronization / Connections
TTL (SMA) - USB - Interlock
Beam Diameter
< 4.0 mm (1/e2 @ 532 nm, 0.5 m from output)
Spatial Mode Quality (M2 )
< 1.2
Cooling
Thermoelectric cooler + air cooling
Power Requirements
110V - 220V / 50Hz-60Hz
Operating Temperature
20 - 30 ºC
Storage Temperature
0 - 60 ºC
Dimensions
436x560x151 mm (WxDxH)
Control Software:
User-friendly

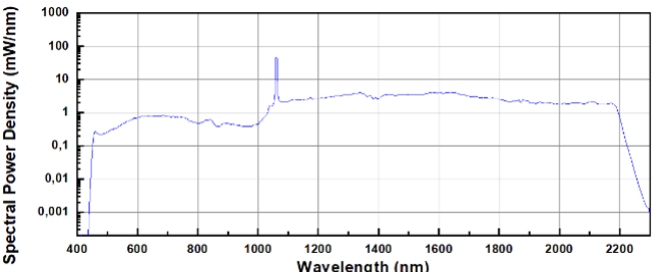

Optical Spectrum
Security
This product is a Class 4 laser. Appropriate safety measures according to such laser class should be taken in its installation and use SPECTRAL PROFILE AND OTHER DETAILED SPECS UNDER REQUEST
SPECTRAL PROFILE AND OTHER DETAILED SPECS UNDER REQUEST
Laser
Accessories
Boreal - Tunable Visible Range
Is the accessory for supercontinuum lasers to choose any wavelength in the visible range (450 - 750 nm). The perfect white laser plug-in accessory for bioimaging, nanophotonic and more.
Iceblink - With Pulse Picker
Average Power:
1 W
Spectral Range:
450 – 2300 nm
VIS+NIR Power:
50 mW
Pulse Duration (at fundamental Wavelength, 1060 nm):
< 10 ps
Tunable repetition rate:
1,2.5, 5, 10, 20, 40 MHz.
Power Stability:
< 0.5% std.dev
Laser
accesories
Tunable Visible Range
BOREAL is the accessory for supercontinuum lasers to choose any wavelength in the visible range (450 - 750 nm). The perfect white laser plug-in accessory for bioimaging, nanophotonic and more.
Applications
