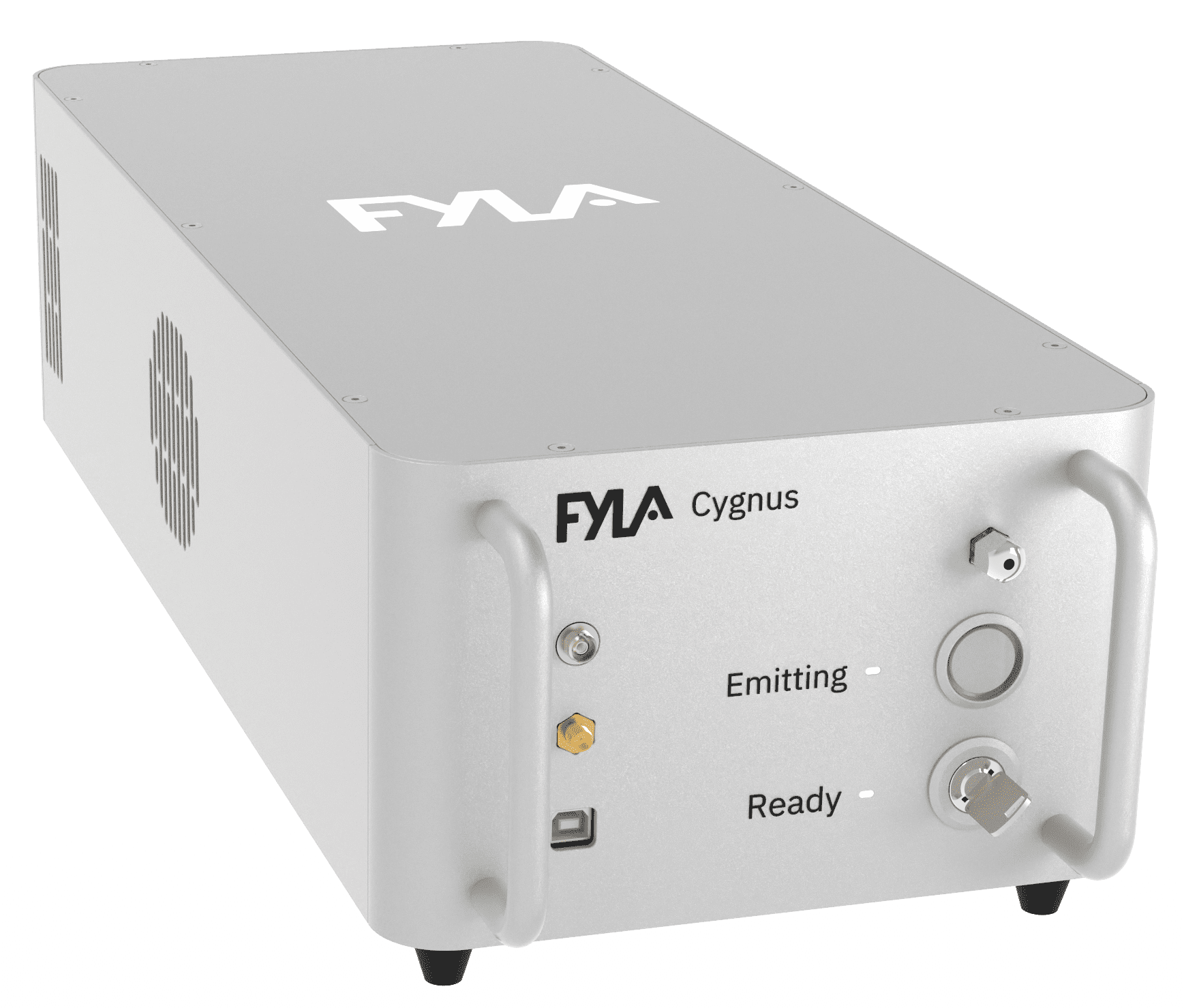

Cygnus

All-Fiber Laser Frequency Comb for THz generation

Average Power:

> 100 mW

Pulse Duration:

< 3 ps



Spectral Range:

1535 nm

Repetition Rate:

1.25 +/- 0.1 GHz (up to 2.5 GHz under request)

Mil Grade Robustness

GHz Range Repetition Rate

Phase Noise and Time Jitter

Cygnus is a frequency comb laser ideal for THz generation, RoF (radio over fiber) and PADC applications. This fiber laser stands out for its robustness, reliability, and average power stability (< 0.5%).

Cygnus is a pulsed laser emitting at GHz Repetition Rate and delivering picosecond pulse duration

Reproducir vídeo

Technical Specifications

Spectral Range

1535 nm

Pulse Duration

< 3 ps

Average Power

> 100 mW

Repetition Rate

1 GHz (up to 2.5 GHz under request)

Power Stability

< 0,2 % (std. dev.)

Polarization

N/A

Output Port

0.2 m - Custom On Demand

Optical Output

FC/APC connector / collimated output

Synchronization / Connections

Trigger Output - Optical Signal 1GHz

Spatial Mode

<1.1

Cooling

Integrated Peltier + air cooling

Display

N/A

Optical Spectral Stability (1h)

< 0,5 dB (Maximum deviation for any wavelength within FWHM band)

Amplitude Pk-to-Pk Stability (4h)

< 0,2 % (std. dev.)

Phase Noise

< -110dBx/Hz @ 10MHz offset

Time Jitter

< 24 fs @ 10MHz offset

Power Requirements

220 V / 110V - 50/60 Hz

Storage Temperature

0 - 60 ºC

Operating Temperature

20 - 30 ºC

Dimensions

408 x 198 x 122 mm

Optical Spectrum

Autocorrelation Trace

Electric Spectrum

Spectral Stability

Long Term Stability

Security

This product is a Class 3 laser - Appropriate safety measures according to such laser class should be taken in its installation and use

SPECTRAL PROFILE AND OTHER DETAILED SPECS UNDER REQUEST

View more

Applications

THz generation

RoF (radio over fiber)

PADC applications
